Edelbrock

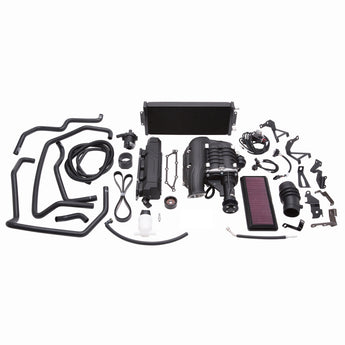

Edelbrock Supercharger Stage 1 - Street Kit 2016 Mazda MX-5 Miata 2.0L w/o Tune

$6,384.95 USD
Shipping calculated at checkout.
3 in stock
EDE15540

Product Details

The Edelbrock Stage 1 Street Supercharger system #15540 (No Tuner) for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV -G 2.0L engine to 198 horsepower and 182 ft-lbs of torque at the rear wheels. Its unique design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package.

To cool the incoming air, is an air-to-water intercooler and heat exchanger. All these features help the Edelbrock deliver dramatically improved performance with a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating for a unique look that will let everybody know your car is Edelbrock powered! Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation - no trimming needed. Bolt-on installation - everything fits right out of the box with no cutting or welding needed.

Features Eaton Gen VI R900 TVS rotor assembly; the same high-quality rotors used by many OEM manufacturers. Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required). Integrated bypass valve for minimal decrease in fuel economy. Available with a FREE 3-year 36,000 mile powertrain warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

This Part Fits:

Year Make Model Submodel
2016-2018 Mazda MX-5 Miata Club
2016-2018 Mazda MX-5 Miata Grand Touring
2017-2018 Mazda MX-5 Miata RF Club
2017-2018 Mazda MX-5 Miata RF Grand Touring
2016-2018 Mazda MX-5 Miata Sport

Manufacturer: Edelbrock

Application: Application Specific

UPC: 085347155408

System Type: Stage 1 - Street System

Vehicle Model: Miata MX-5

Housing Material: Cast Aluminum

Gasket or Seal Included: Yes

Quantity: Kit

Oil Capacity: 125 mL

Center Housing Cooling Type: Intercooler

Internal Step-Up: Yes

Mounting Bracket Included: Yes

Outside Pulley Diameter: 2.75 in

Availability Note: Available to Order

Warranty: 36 Months

Emissions Code: EO Number: D-215-95

Hazardous Materials Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Installation Notes: Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.

Finish: Black Powder Coated

Maximum Boost Pressure: 12 psi

Pulley Belt Width: 6-Rib

Universal or Specific Fit: Specific

This supercharger system is designed to increase the performance of the SKYACTIV-G 2.0L engine to 198 horsepower and 182 ft-lbs of torque at the rear wheels. It utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package and includes an air-to-water intercooler and heat exchanger. The kit is finished with a durable black powder coating and is designed for a bolt-on installation with no cutting or welding required.
